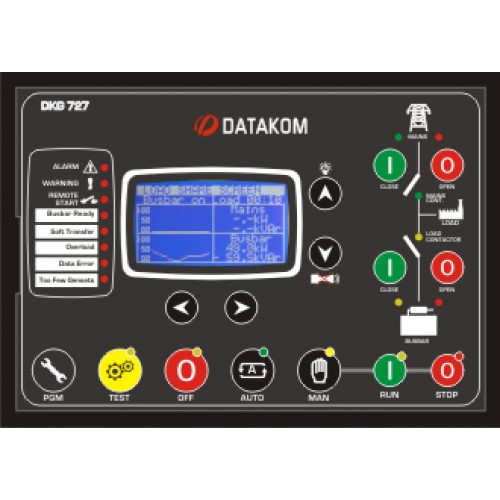

MAINS PARALLELLING UNIT DKG-727

MAINS PARALLELLING UNIT DKG-727
Categorie : Accesorii generatoare
Producător: Datakom Datakom
Cod produs: DKG-727
Disponibilitate: În Stoc
Preţ: 6.249,00 Lei
PRETURILE CONTIN TVA: 6.249,00 Lei
Cant:
   - SAU -



Automatic mains failure
Automatic and manual start
True RMS measurements
Complete mains power measurements
Busbar voltages and frequency measurements
Dead bus sensing
Synchroscope
No break transfer & no break load test
Multi genset soft transfer to / from mains
Multi genset power export to mains
Multi genset peak lopping (peak shaving)
Load surge monitoring in programmed time scope
G-59 mains protections
Online monitoring Single Line Diagram
Remote start operation capability
Programmable Logic functions
Voltage transformer ratio for MV applications
Earth fault current monitoring
Battery backed-up real time clock
Built-in daily, weekly, monthly exerciser
500 event logs with time stamp and full snapshot
Weekly operation schedule programs
Field adjustable parameters
User friendly graphic indicators and bar graphs
Dual language support
Customer logo display capability
Protected semiconductor digital outputs
Configurable digital inputs: 12
Configurable digital outputs: 8
Configurable led indicators: 4
Dimensions: 235 x 167 x 48mm (WxHxD)
Sealed front panel (IP65)
